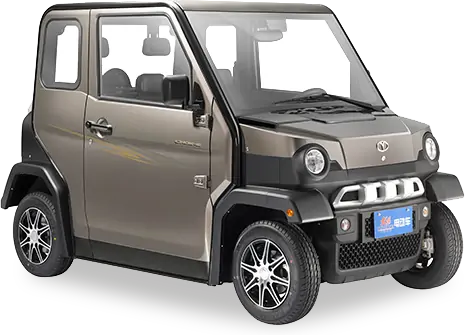

CHOK-S

"8" - shaped steel pipe bird's nest style frame structure "

High strength, high rigidity, carefully protected, safe and worry free.

Product specifications

Model	CHOK-S
Length×Width×Height(mm)	2545×1392×1598
Wheelbase(mm)	1900
FRONT WHEEL TRACK/REARFRONT WHEEL TRACK(mm)	1125
Rated Power(KW)	4.0/4.5
Rated Voltage(V)	60
Battery Capacity	12V 150Ah
Battery Q'TY(unit)	5
Min.Ground Clearance(mm)	150
Curb Weight(kg)	775
Charging Volt.(v)	220/110
Driving Type	REAR AXLE DRIVE
Parking Brake	HAND BRAKE
Front Wheel/Rear Wheel	145/70 R12
Brake Mode(FR./RP)	Disk/Disk
Max.Speed(km/h)	42
Climbing Ability(%)	≥22
Max.Economical Continious Mileage(km)	150

Product Features

Blue backlit LCD instrument panel

Driving information is clear at a glance, with various alarm indicators such as seat belt alarm and door closing alarm.

Adjustable headlights

Fashionable and aesthetically pleasing, it features multiple functions such as high beam, low beam, and position adjustment.

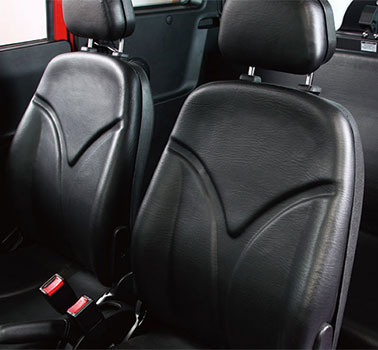

Slide and flip seat

Ergonomic design, with seats that can slide freely forward and backward, adjustable backrest angles, and a comfortable four-seater passenger space.

Braking System

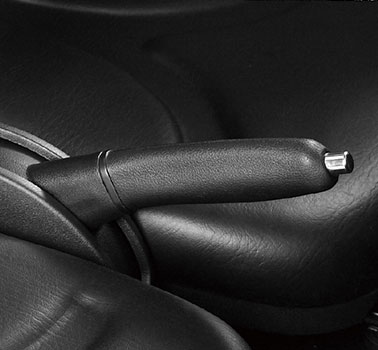

Four wheel disc brake disc hydraulic brake, equipped with automotive grade ratchet mechanism handbrake and parking device.

Application scenarios
